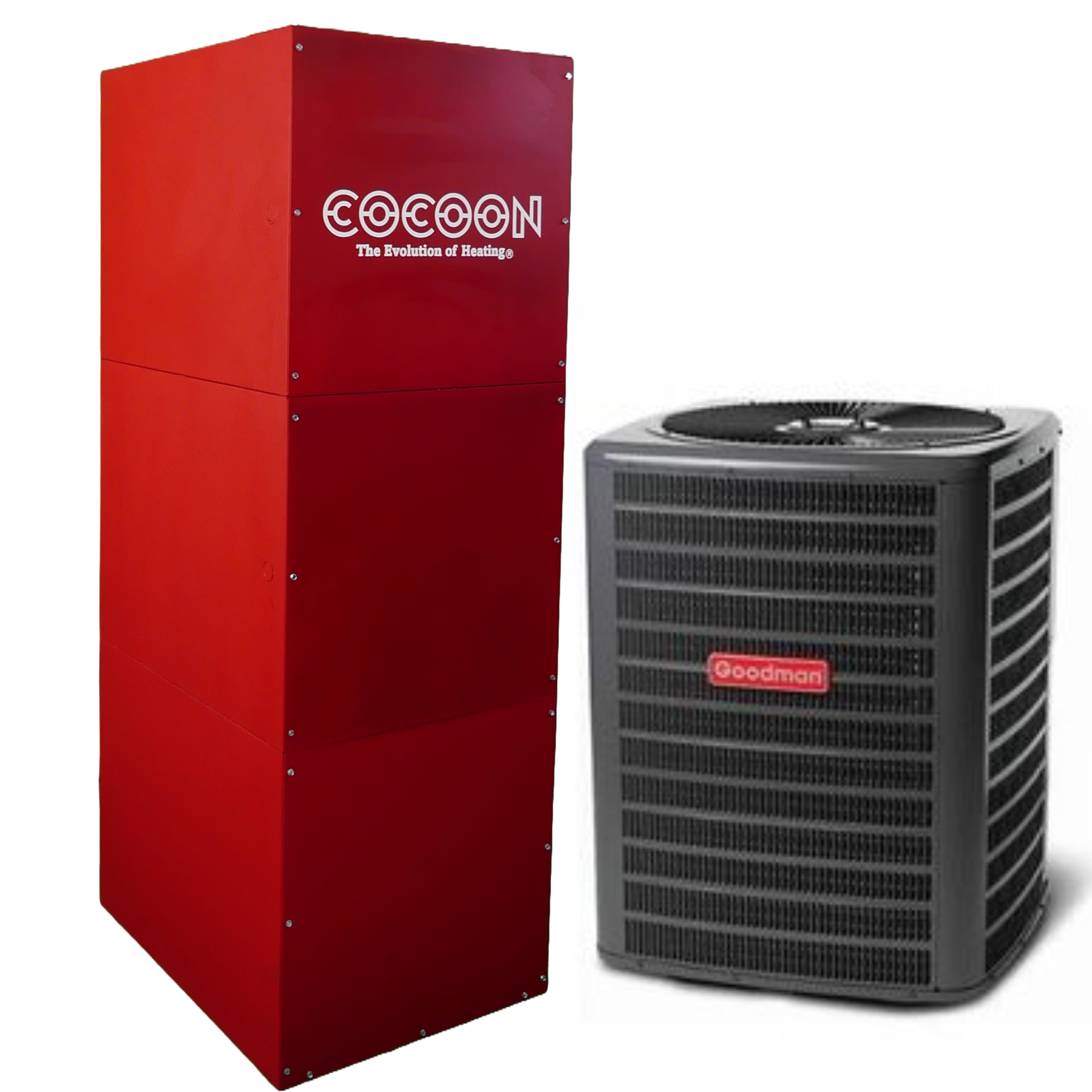

COCOON THRMS-1-2800 Furnace & 16 SEER Cooling Bundle

The COCOON THRMS-1-2800 Bundle combines our Thermal Mass Furnace, 16 SEER air conditioning system, and smart thermostat into a complete heating and cooling solution designed for homes and offices.

Suitable for spaces up to 2,000 square feet for heating and approximately 2,000–2,800 square feet for cooling depending on climate and geographic location, this system is engineered to deliver consistent comfort, lower operating costs, and improved energy efficiency.

Energy Savings Up to 41%

Third-party testing has verified energy savings of up to 41% compared to traditional electric furnaces. By utilizing Thermal Mass Technology, the COCOON furnace stores thermal energy and delivers it in a controlled manner to help reduce wasted energy and maintain more consistent indoor temperatures.

Unlike conventional electric heating systems that generate heat only when called upon, COCOON stores thermal energy and manages its delivery more effectively, helping improve comfort while reducing operating demand.

Designed for Comfort and Flexibility

The THRMS-1-2800 features a variable-speed ECM blower motor, multi-stage operation, intelligent controls, and multiple installation configurations to accommodate a wide variety of applications. The system can be installed in vertical, horizontal, or downflow orientations and is designed to simplify installation while providing long-term reliability.

The included 16 SEER cooling system provides efficient cooling, humidity management, and quiet operation, creating a complete year-round comfort solution.

---

Key Benefits

• Third-party verified energy savings of up to 41%
• Complete heating and cooling solution
• Thermal Mass Technology for more consistent indoor comfort
• Variable-speed ECM blower motor
• Multi-stage heating operation
• Intelligent monitoring and control capabilities
• Multiple installation configurations
• Minimal routine maintenance requirements
• Designed and manufactured in the USA

---

Furnace Specifications

General Specifications – THRMS-1-2800-S/R-P8

Energy Source:
Electric Grid, Solar, Wind, Hydro, Backup Generator, or Hybrid Energy Systems

Venting Required:
None

Emissions:
None

Blower Motor:
ECM Multi-Speed / Variable-Speed

Heating Capacity:
81,432 BTUs

Active Heating Output:
49,135 BTUs

Stored Thermal Energy:
32,297 BTUs

Active Power Consumption:
14.4 kW

Number of Circuits:
2

Number of Circuit Breakers:
2

Voltage:
208-240V / 480V

Frequency:
50Hz / 60Hz

Full Load Amperage:
30 Amps Each Circuit

Maximum Overcurrent Protection:
45 Amps Each Circuit

Minimum Circuit Ampacity:
Per NEC and Local Codes

Circuit Ampacity:
58 Amps

Recommended Breaker:
60 Amps

Maximum Airflow:
2,000 CFM (Customizable Equipped)

Installation Orientation:
Vertical, Horizontal, or Downflow

Electrical Phase:
Single Phase Standard
Three-Phase Available (Contact for Pricing and Availability)

Unit Dimensions:
18" W × 24" D × 54" H

Product Weight:
180 lbs

Shipping Weight:
200 lbs

Country of Origin:
United States

Safety Listing:
UL Listed – File Number SA44706

---

Cooling System Specifications

Included 16 SEER Air Conditioning System

The included 4-ton air conditioning system utilizes R-410A refrigerant and is designed to provide efficient cooling, humidity control, and quiet operation.

Cooling Capacity:
48,000 BTUs

Nominal Capacity:
4 Ton

SEER Rating:
16

Energy Star Rated:
Yes

Compressor Type:
Copeland UltraTech Scroll Compressor

Compressor Stage:
Single Stage

Refrigerant:
R-410A

Sound Level:
70.4 dB

Electrical:
208/230V, Single Phase, 60Hz

Maximum Breaker Size:
40 Amps

Minimum Breaker Size:
40 Amps

Liquid Valve Size:
3/8"

Suction Valve Size:
3/4"

Valve Type:
Sweat

Dimensions:
29" W × 29" D × 44" H

Weight:
220 lbs

---

Air Conditioning Features

• R-410A chlorine-free refrigerant
• COCOON Smart Control capable
• Two-stage Copeland UltraTech scroll compressor
• Enhanced humidity management
• Quiet operation
• High-density compressor sound blanket
• Copeland Comfort Alert diagnostics
• Low-pressure switch
• Fully charged for 15'–25' line set length
• Field-installed filter dryer
• Highly efficient condenser fan motor
• Copper tube / enhanced aluminum fin coil
• AHRI Certified
• ETL Listed

To achieve the published 16 SEER efficiency rating, the system must be installed with the included evaporator coil. The variable-speed ECM blower motor used in the COCOON furnace plays a critical role in maximizing airflow management and overall system efficiency.

A properly matched 16 SEER system can reduce cooling-related energy consumption compared to lower-efficiency equipment while improving comfort and humidity control.

---

Warranty Information

Furnace Warranty

• 1-Year, 5-Year, and 10-Year Limited Warranty Options
• 10-Year Heat Exchanger Warranty
• Lifetime Warranty Available on Select "Ever" Models
• See Warranty Documentation for Full Details

Cooling System Warranty

• 10-Year Limited Warranty with Online Registration
• Lifetime Warranty Available on Select "Ever" Models

---

Shipping Information

Shipping Method:
LTL Freight (Where Available)

Total Shipment:
2 Pallets

Total Shipping Weight:
Approximately 420 lbs

Country of Origin:
United States

---

Sizing Assistance

Please review the COCOON sizing chart before purchasing. If you have questions about sizing, installation requirements, or application suitability, our team is available to help ensure you select the right solution for your home or project.
