Black Washed Wall

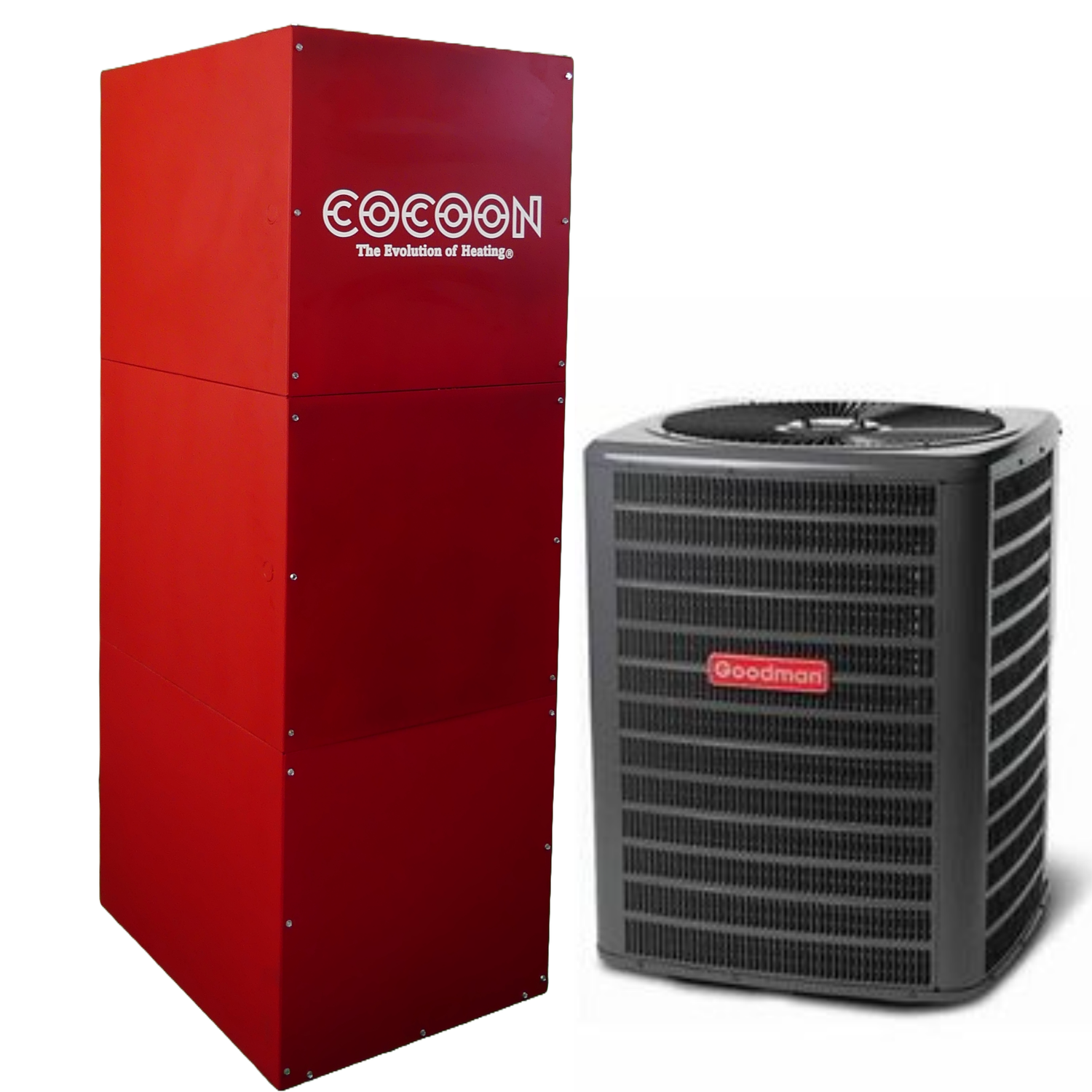

COCOON Furnace AC Bundle-2000

In stock
Product Details

THRMS-1-2000 furnace with 16SEER A-Coil, Condenser and Smart Thermostat are suitable for a home or office up to a maximum of 2000square feet for heating and 1400-2000 square feet depending on climate/geolocation.

· Energy savings of up to 41%!

· SMART T-stat

· Plug and play controls!

· Easy multi-optional, quick installations!

· Condensing unit and A-Coil (Rebate Eligible from utility provider in most states)

Features and Benefits

Overview for Bundle

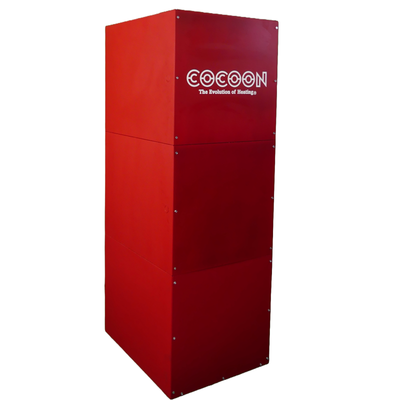

Cocoon furnaces are high-quality construction, innovative design and super-efficient operation at an amazing value. The THRMS-1-2000 is a variable speed, multi-stage, multi-speed and customizable furnace, multi-energy source capable to meet and exceed the needs of your home. Our revolutionary design utilizes; Customizable control algorithms, controllable infrared heat spectrum capability and an ECM motor, which uses less power and provides better air flow. These combined technologies and some secret sauce are how we can create unmatched value and energy savings to save you BIG UGLY PILES OF MONEY not just in winter but all year long. The value of the Cocoon system is more than efficiency, the THRMS-1-2000 features many different quick connection options to reduce installation time. The A.I. and I.O.T. of the system allows for self-diagnosing, system monitoring and upgradeable efficiency options. Maintenance for this system is minimal our recommend thermostat has built in reminders to change the filters and create less problems for your home.

The Cocoon 3-ton A/C system is a 16 SEER rated Air Conditioner that uses the chlorine-free refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. The 3-ton condenser has a high efficiency Copeland Ultra Tech Scroll Compressor, which provides improved temperature and humidity control. This unit is designed for the consumer who desires superb comfort and quiet operation.

If you're looking to save money, the environment and cut your energy bills to improve your comfort without breaking the bank, your search stops here with the THRMS-1-2000-S/R-P8 and 3-ton bundle pack.


General Specification for THRMS-1-2000-S/R-P8

Energy Type: Electric Grid, Solar, Wind, Hydro or Electric Generator or a mix there of.

Venting Type: None, No venting necessary

Emissions: None/0

Multi-Stage Blower: ECM Multi/Vary-speed

BTU output: 0-90,000 customizable

Emissions: None/0

Install direction: Vertical, Horizontal, Downflow

Circuit Ampacity: 58

Recommend Breaker: 60

Maximum Air Flow: 2000 CFM (Customizable equipped)

Electrical Phase: 1 (3 phase capable call for pricing and availability)

Product Dimensions: Width 18" Inches--Height 36" Inches--Depth 24" Inches

Product Weight: 225 Pounds

Shipping Weight: 240 Pounds

Certifications of Origin: United States Certifications

Safety Listing: UL Listed File Number SA44706

Warranty Parts: 1,5,10 years limited (See usage and warranty detail)

Heat Exchanger Warranty: 10 years on heat exchanger (Lifetime on "Ever" Line)

Warranty: 10 years and Lifetime available. (Lifetime on "Ever" Line)

General Specification for Bundle

SKU Bundle-2000-3ton

Manufacturer Cocoon White Label

Cooling BTU 36,000

Decibel 70.4

Energy Star Yes

Refrigerant R410A

Seer 16

Compressor Stage 1

Compressor type Scroll

Liquid valve size 3/8”

Suction Valve size ¾”

Electrical 208/230 V, 1phase 60hrz

Max Breaker size 35 amps

Min Breaker size 19.7 amps

Nominal Capacity 3ton

Valve type Sweat

Height 38.25

Width 29”

Depth 29”

Weight 202 lbs

Warranty 10 years with online registration (Lifetime on “Ever” Line)

Features for AC system:

· R-410A chlorine-free refrigerant

· Cocoon Smart A.I. Control capable

· Two stage Copeland UltraTech scroll compressor

· High density foam compressor sound blanket

· Copeland ComfortAlert diagnostics

· Low pressure switch

· Fully charged for 15' line set length

· Factory installed filter dryer

· Highly efficient condenser fan motor

· Copper tube / enhanced aluminum fin coil

· AHRI Certified; ETL Listed

To achieve the 16 SEER efficiency this central heating and cooling unit must be installed with our recommended evaporator coil that comes with this bundle, a Cocoon furnace only uses a variable speed motor for maximum energy efficiency and air control. Which is vital to achieving the Seer rating for this equipment. A 16 SEER system will reduce your electric bill approximately 6% - 10% more than a 15 SEER system.

Ecobee Smart Thermostat

The Ecobee Smart Thermostat with voice control enhances how you experience comfort by working with an advanced Smart Sensor (included) and brings new meaning to having control of your home thanks to Alexa built in. Not only will it help you save energy and reduce the cost of heating and cooling your home, it also provides an easy way to have a lasting impact in the fight against climate change. The Ecobee Smart Thermostat with voice control is one small change that can make all the difference

Be sure to look at square footage sizing chart or call with questions we are here to help.

(Detail Of shipping)

6 boxes in total.

Shipping Weight- 480 Pounds

Certifications Country of Origin- United States

Weight is different on each box- 85, 84 and 55, 202, 50, 4 pounds

Box sizes vary. - LTL where available on Multi orders.
